AABB Intersection

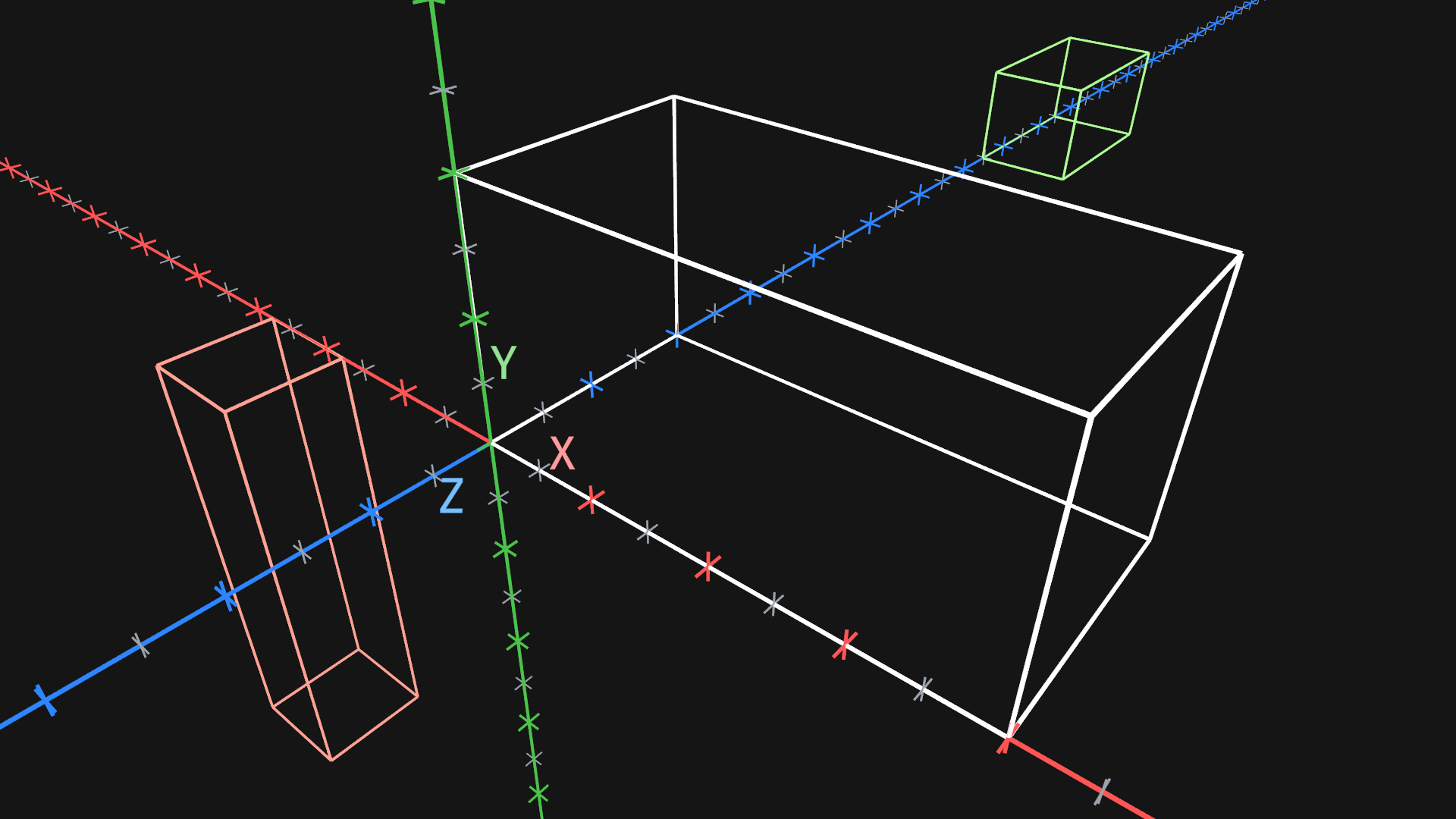

An Axis-Aligned Bounding Box (AABB) is a type of bounding volume characterized by a box that has no rotation relative to the origin of the coordinate space. This means that each face of the box is aligned with one of the primary axes of the space (x, y, and z). In the image below, you can observe that each edge of the AABB is parallel to one of the basis vectors of the coordinate system.
AABBs are commonly utilized to optimize the performance of algorithms by serving as a proxy for more complex objects. The principle is to first intersect the simpler AABB, which is a quick operation, and then to intersect the more complex object contained within the AABB. This is the idea behind acceleration structures, where a hierarchy of bounding volumes is used to quickly determine the final intersection between many objects.
Ray-AABB Intersection

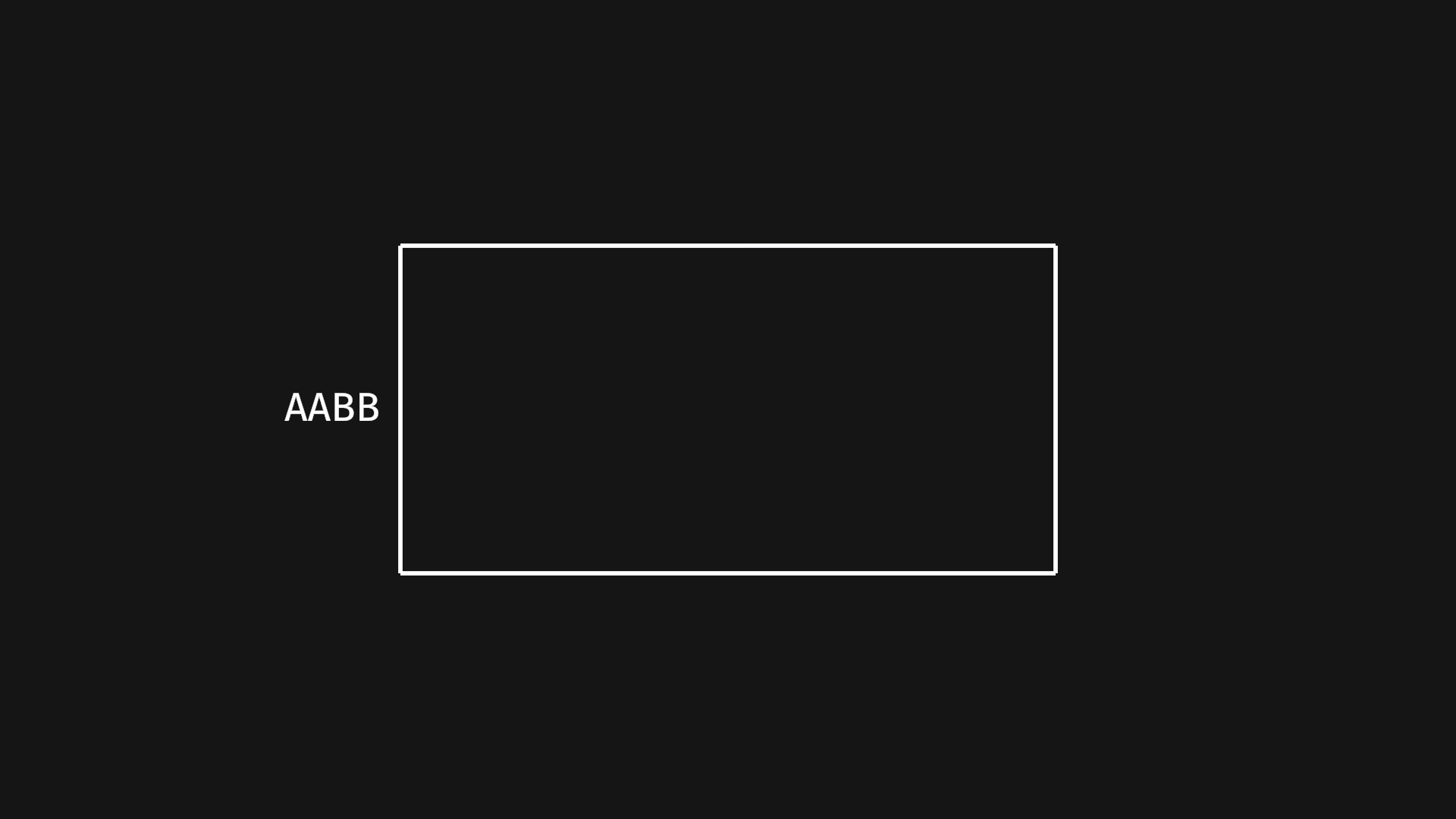

To intersect a ray with an AABB, we can take a simple approach using slabs, a slab is defined by the region created in between 2 parallel planes. Then we compute the intersection points between this slab and the ray, like in this animation of a 2D AABB being intersected by a ray:
To determine if a ray intersects an AABB, we calculate the intervals between the intersection points of the ray with each slabs that define the AABB. We then check these intervals for each dimension (x, y, and z) of the AABB. An intersection is confirmed if the intervals are valid across all dimensions, meaning the closest intersection point is closer than the farthest intersection point.
This method is detailed in the algorithm from Real-Time Collision Detection by Christer Ericson.
// Intersects a ray R(t) = p + t*d against an Axis-Aligned Bounding Box (AABB).
// If there's an intersection, returns intersection distance tmin and point q.
bool IntersectRayAABB(
float3 p, // Ray origin
float3 d, // Ray direction
float3 aabbMin, // Minimum corner of the AABB
float3 aabbMax, // Maximum corner of the AABB
out float tmin, // Intersection distance
out float3 q // Intersection point
)
{
tmin = 0.0f; // Start with the minimum distance (can be -FLT_MAX for entire ray)
float tmax = FLT_MAX; // Maximum allowable distance for the ray (segment length or ∞)
// Iterate over each axis (x, y, z)
for (int i = 0; i < 3; i++)
{
// If the ray is parallel to the slab (AABB plane pair)
if (abs(d[i]) < EPSILON)
{
// If the origin is outside the slab, there's no intersection
if (p[i] < aabbMin[i] || p[i] > aabbMax[i])
return false;
}
else
{
// Compute the intersection t-values for the near and far planes of the slab
float ood = 1.0f / d[i];
float t1 = (aabbMin[i] - p[i]) * ood;
float t2 = (aabbMax[i] - p[i]) * ood;
// Ensure t1 is the intersection with the near plane, and t2 with the far plane
if (t1 > t2)
{
float temp = t1; // Swap t1 and t2
t1 = t2;
t2 = temp;
}
// Update tmin and tmax to compute the intersection interval
tmin = max(tmin, t1);
tmax = min(tmax, t2);
// If the interval becomes invalid, there is no intersection
if (tmin > tmax)
return false;
}
}
// If we reach here, the ray intersects the AABB on all 3 axes
q = p + d * tmin; // Compute the intersection point
return true;
}
Ray - AABB Test
When working with Axis-Aligned Bounding Boxes (AABBs) in graphics, there are scenarios where simply determining whether a ray intersects the AABB is sufficient, without requiring the exact intersection point. In such cases, we can adopt a more efficient approach that minimizes unnecessary computations.
To achieve this, instead of treating the problem as a ray-AABB intersection, we use a finite line segment. This is practical because, in most cases, we already have defined constraints for the ray’s minimum and maximum hit distances. These constraints are commonly derived from the properties of the camera (e.g., near and far clipping planes in a 3D viewing frustum). Using these bounds, we can construct a finite segment that represents the portion of the ray that lies within the camera’s viewing range.
// Tests if a segment specified by points p0 and p1 intersects an Axis-Aligned Bounding Box (AABB).
bool TestSegmentAABB(
float3 p0, // Start point of the segment
float3 p1, // End point of the segment
float3 aabbMin, // Minimum corner of the AABB
float3 aabbMax // Maximum corner of the AABB
)
{
// Compute box center-point and half-length extents
float3 c = (aabbMin + aabbMax) * 0.5f; // Box center
float3 e = aabbMax - c; // Box half-extent
// Segment midpoint and halflength vector
float3 m = (p0 + p1) * 0.5f; // Segment midpoint
float3 d = p1 - m; // Segment halflength vector
m = m - c; // Translate box and segment to the origin
// Test world coordinate axes as separating axes
float adx = abs(d.x);
if (abs(m.x) > e.x + adx) return false;
float ady = abs(d.y);
if (abs(m.y) > e.y + ady) return false;
float adz = abs(d.z);
if (abs(m.z) > e.z + adz) return false;
// Add a small epsilon to counteract potential arithmetic errors when the segment is
// near-parallel to one of the coordinate axes
adx += EPSILON;
ady += EPSILON;
adz += EPSILON;
// Test cross products of segment direction vector with coordinate axes
if (abs(m.y * d.z - m.z * d.y) > e.y * adz + e.z * ady) return false; // Cross with X-axis
if (abs(m.z * d.x - m.x * d.z) > e.x * adz + e.z * adx) return false; // Cross with Y-axis
if (abs(m.x * d.y - m.y * d.x) > e.x * ady + e.y * adx) return false; // Cross with Z-axis
// No separating axis found; segment overlaps the AABB
return true;
}
AABB Distance
To calculate the distance to an AABB, we use a simple Signed Distance Function (SDF). SDFs are an amazing tool for computing distances to geometric primitives. If you’re not familiar with them, I highly recommend exploring this concept, as they are very useful in many cases!
float sdBox(
float3 p, // The point in space to test (relative to the box center).
float3 b // The half extents of the box (i.e., the dimensions from the center to the box surface).
)
{
float3 q = abs(p) - b;
// Calculate the signed distance:
// - The length of the positive part of q (outside distance)
// - Add the inside (negative) distance for points inside the box
return length(max(q, 0.0)) + min(max(q.x, max(q.y, q.z)), 0.0);
}
This algorithm leverages a smart use of symetry through the abs instruction and separate the computation in an outside and inside distance. The details are explained in The SDF of a Box video.
OBB
Oriented Bounding Boxes (OBBs) generalize AABBs by removing the restriction that the bounding box must align with the coordinate axes. Instead, an OBB can be arbitrarily rotated in 3D space, allowing it to better conform to the shape of the object it encloses.
An OBB is typically represented by:
- A position vector: The center of the box in 3D space.
- A basis of three unit vectors: These form an orthonormal set that defines the orientation of the box. Each vector represents one of the box’s principal axes.
- Scales (or half-extents): Each dimension is associated with a scale value that determines the size of the box along the corresponding basis vector.
This structure allows an OBB to enclose objects in a rotation-independent manner and to fit tightly around objects regardless of their orientation in the scene. This property is beneficial for culling as it means that the efficiency of the culling improves and we’ll have less objects to render
Ray - OBB Intersection

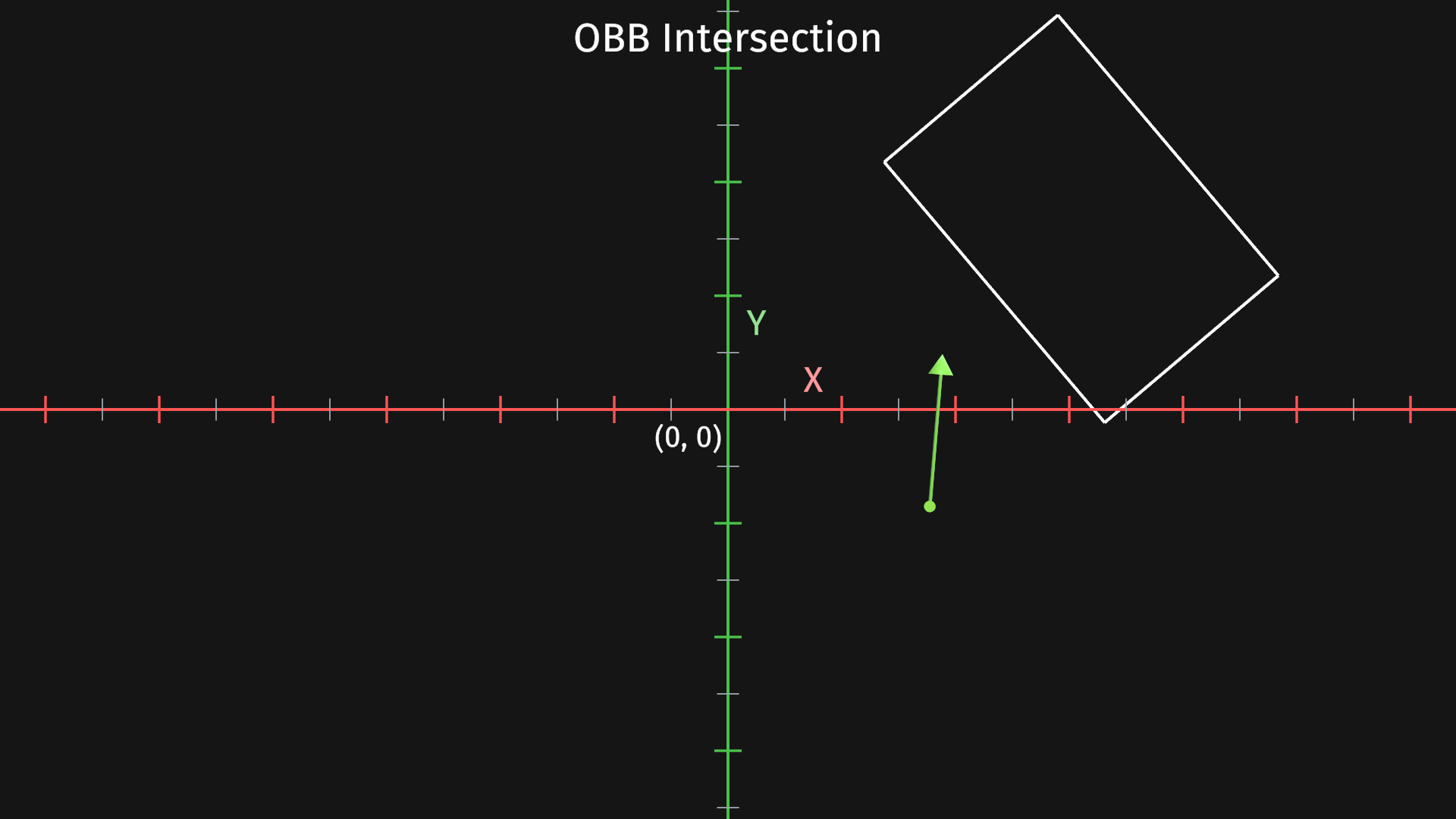

The intersection against an OBB is surprisingly easy as we already hae the algorithm to intersect an AABB, we just need to add the rotation part. We can simply do that by rotating the ray with the inverse rotation matrix of the OBB. As you’ve seen in the Matrix Inverse section, inverting a rotation matrix is easy, we can just take it’s transpose and do a multiply on the ray.
Conclusion
Bounding volumes such as AABBs and OBBs, are essential tools in computer graphics, physics simulations, and collision detection. They allow us to simplify and accelerate complex calculations by providing efficient ways to test for intersections or compute distances to proxy objects.
AABBs are straightforward and computationally inexpensive to work with, making them ideal for approximating intersections to complex geometry and hierarchical acceleration structures. However, their lack of rotation can result in suboptimal bounds around rotated or irregularly shaped objects, which may lead to inefficiencies when used for application such as culling.
OBBs address this limitation by extending AABBs with arbitrary rotations. By aligning the bounding volume closely to the object’s orientation, OBBs provide tighter fits and more accurate intersections, particularly for objects that are not axis-aligned. While OBBs come with increased computational complexity, their tighter bounds make them suitable for scenarios where precision is important like in culling.
Both AABBs and OBBs serve distinct purposes and trade-offs depending on the use case. Selecting the appropriate bounding volume depends on the balance needed between simplicity, performance, and accuracy in the context of your application. Familiarizing yourself with these tools and the algorithms to work with each type ensures you’ll be equipped to handle a variety of challenges in 3D mathematics and programming.
References
- 📄 Bounding volume - Wikipedia
- 📄 Distance functions - Inigo Quilez
- 📄 Real-Time Collision Detection (Christer Ericson) - PDF (5.3.3 Intersecting Ray or Segment Against Box - page 179)
- 🎥 The SDF of a Box - Inigo Quilez
